Free OAR Practice Test 3 – Officer Aptitude Rating Test Prep 2026
Boost your OAR score with Free OAR Practice Test 3 from our series of Six OAR Practice Test , a focused mock test designed to match the actual OAR style and difficulty.
Take this free OAR practice test with 30 carefully designed questions covering all three OAR sections — Math Skills, Reading Comprehension, and Mechanical Comprehension — so you can check your strengths, find weak spots, and improve your speed before exam day. Each question includes a clear explanation to help you understand the method, not just the answer.
This OAR Practice Test is ideal for learners who want realistic practice, better time management, and a strong review of key OAR concepts. Use it as a full-length practice session or section-by-section revision to build confidence and improve accuracy.
Quiz-summary
0 of 30 questions completed
Questions:
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
Information
Test Instructions
No. of Questions: 30
Questions: Multiple choice with 4 options (A, B, C, D)
Review: You can flag questions for review and return to them
Submission: Click “Submit Test” when ready to finish
You have already completed the quiz before. Hence you can not start it again.
Quiz is loading...
You must sign in or sign up to start the quiz.
You have to finish following quiz, to start this quiz:
Results
0 of 30 questions answered correctly
Your time:
Time has elapsed
You have reached 0 of 0 points, (0)
| Average score |
|
| Your score |
|
Categories
- Not categorized 0%
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- Answered
- Review
-
Question 1 of 30
1. Question

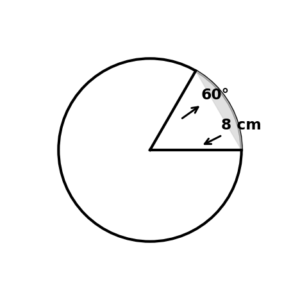

A sector of a circle with radius 8 cm has a central angle of 60°. What is the area of the sector?
Correct
Area of sector = (θ/360°)πr² = (60°/360°)π(8)² = (1/6)64π = 32π/3 cm².
Incorrect
Area of sector = (θ/360°)πr² = (60°/360°)π(8)² = (1/6)64π = 32π/3 cm².
-
Question 2 of 30
2. Question
What is the remainder when 2x³ – 5x² + 3x – 7 is divided by (x – 2)?
Correct
The remainder when a polynomial f(x) is divided by (x−a) is f(a). Compute f(2) = 2(2³) – 5(2²) + 3(2) – 7 = 2(8) – 5(4) + 3(2) – 7 = 16 – 20 + 6 – 7 = -5.
Incorrect
The remainder when a polynomial f(x) is divided by (x−a) is f(a). Compute f(2) = 2(2³) – 5(2²) + 3(2) – 7 = 2(8) – 5(4) + 3(2) – 7 = 16 – 20 + 6 – 7 = -5.
-
Question 3 of 30
3. Question

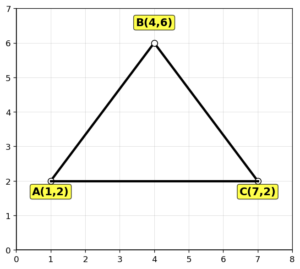

If the vertices of a triangle are A(1,2), B(4,6), and C(7,2), what is its area?
Correct
Using the triangle area formula, Area = (1/2)|x₁(y₂-y₃) + x₂(y₃-y₁) + x₃(y₁-y₂)|. Substituting A(1,2), B(4,6), and C(7,2): Area = (1/2)|1(6-2) + 4(2-2) + 7(2-6)| = (1/2)|4 + 0 – 28| = (1/2)(24) = 12.
Incorrect
Using the triangle area formula, Area = (1/2)|x₁(y₂-y₃) + x₂(y₃-y₁) + x₃(y₁-y₂)|. Substituting A(1,2), B(4,6), and C(7,2): Area = (1/2)|1(6-2) + 4(2-2) + 7(2-6)| = (1/2)|4 + 0 – 28| = (1/2)(24) = 12.
-
Question 4 of 30
4. Question

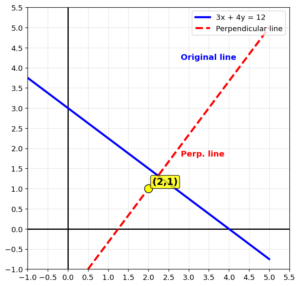

What is the equation of the line perpendicular to 3x + 4y = 12 and passing through (2,1)?
Correct
Original line has slope -3/4. Perpendicular slope is 4/3. Using point-slope form: y – 1 = (4/3)(x – 2), so y = (4/3)x – 8/3 + 1 = (4/3)x – 5/3.
Incorrect
Original line has slope -3/4. Perpendicular slope is 4/3. Using point-slope form: y – 1 = (4/3)(x – 2), so y = (4/3)x – 8/3 + 1 = (4/3)x – 5/3.
-
Question 5 of 30
5. Question
A sphere has volume 288π cubic units. What is its radius?
Correct
V = (4/3)πr³ = 288π. so, (4/3)r³ = 288 , r³ = 288 × 3/4 = 216, r = ∛216 = 6 units.
Incorrect
V = (4/3)πr³ = 288π. so, (4/3)r³ = 288 , r³ = 288 × 3/4 = 216, r = ∛216 = 6 units.
-
Question 6 of 30
6. Question
If f(x) = e^(2x) and g(x) = ln(x), what is f(g(x))? (^ means ‘Power’)
Correct
f(g(x)) = f(ln(x)) = e^[2 × ln(x)] = e^[ln(x²)] = x²
Incorrect
f(g(x)) = f(ln(x)) = e^[2 × ln(x)] = e^[ln(x²)] = x²
-
Question 7 of 30
7. Question
What is the coefficient of x^4 in the expansion of (2x – 1)^6?
Correct
Using the binomial theorem, the x^4 term occurs when 6-r=4, so r=2. Then C(6,2)(2x)^4(-1)^2 = 15*16 = 240, so the coefficient is 240.
Incorrect
Using the binomial theorem, the x^4 term occurs when 6-r=4, so r=2. Then C(6,2)(2x)^4(-1)^2 = 15*16 = 240, so the coefficient is 240.
-
Question 8 of 30
8. Question

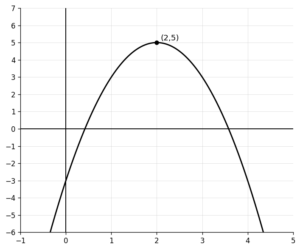

Find the maximum value of f(x) = -2x² + 8x – 3 on the interval [0,5].
Correct
This is a downward-opening parabola, so the maximum occurs at the vertex or an endpoint. The vertex is at x = -b/(2a) = -8/(2·-2) = 2. Then f(2) = -2(4) + 16 – 3 = 5. Checking endpoints: f(0) = -3 and f(5) = -13. Therefore, the maximum value is 5.
Incorrect
This is a downward-opening parabola, so the maximum occurs at the vertex or an endpoint. The vertex is at x = -b/(2a) = -8/(2·-2) = 2. Then f(2) = -2(4) + 16 – 3 = 5. Checking endpoints: f(0) = -3 and f(5) = -13. Therefore, the maximum value is 5.
-
Question 9 of 30
9. Question
If sin(2θ) = 3/5 and 0 < θ < π/4, what is cos(θ)?
Correct
Since 0 < θ < π/4, we have 0 < 2θ < π/2, so cos(2θ) is positive. From sin(2θ) = 3/5, it follows that cos(2θ) = 4/5. Using the identity cos(2θ) = 2cos²(θ) - 1, we get 4/5 = 2cos²(θ) - 1, so 2cos²(θ) = 9/5 and cos²(θ) = 9/10. Therefore, cos(θ) = 3/√10.
Incorrect
Since 0 < θ < π/4, we have 0 < 2θ < π/2, so cos(2θ) is positive. From sin(2θ) = 3/5, it follows that cos(2θ) = 4/5. Using the identity cos(2θ) = 2cos²(θ) - 1, we get 4/5 = 2cos²(θ) - 1, so 2cos²(θ) = 9/5 and cos²(θ) = 9/10. Therefore, cos(θ) = 3/√10.
-
Question 10 of 30
10. Question
Refer to the figure. How much effort is needed to lift the 240 lb load?
Correct
This is a 6-rope movable pulley system. Mechanical advantage = 6. Effort = Load ÷ MA = 240 ÷ 6 = 40 lb.
Incorrect
This is a 6-rope movable pulley system. Mechanical advantage = 6. Effort = Load ÷ MA = 240 ÷ 6 = 40 lb.
-
Question 11 of 30
11. Question

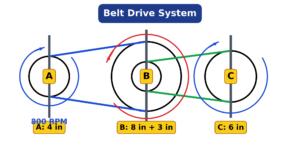

Refer to the figure. At what speed does pulley C rotate?
Correct
Pulley A (4 in, 800 RPM) drives pulley B (8 in), so pulley B rotates at 800 × 4/8 = 400 RPM. The 3 in pulley on the same shaft as B also rotates at 400 RPM and drives pulley C (6 in), so pulley C rotates at 400 × 3/6 = 200 RPM. Therefore, pulley C rotates at 200 RPM.
Incorrect
Pulley A (4 in, 800 RPM) drives pulley B (8 in), so pulley B rotates at 800 × 4/8 = 400 RPM. The 3 in pulley on the same shaft as B also rotates at 400 RPM and drives pulley C (6 in), so pulley C rotates at 400 × 3/6 = 200 RPM. Therefore, pulley C rotates at 200 RPM.
-
Question 12 of 30
12. Question
Refer to the figure. Which way will gear E rotate?
Correct
Each meshing gear reverses the direction of rotation. If gear A rotates clockwise, then gear B rotates counterclockwise, gear C rotates clockwise, gear D rotates counterclockwise, and gear E rotates clockwise. Therefore, gear E rotates clockwise.
Incorrect
Each meshing gear reverses the direction of rotation. If gear A rotates clockwise, then gear B rotates counterclockwise, gear C rotates clockwise, gear D rotates counterclockwise, and gear E rotates clockwise. Therefore, gear E rotates clockwise.
-
Question 13 of 30
13. Question
“Refer to the figure. What is the actual mechanical advantage of this inclined plane?
Correct
Load = (10/3)×45 lb = 150 lb. Actual MA = 150/54 ≈ 2.8:1
Incorrect
Load = (10/3)×45 lb = 150 lb. Actual MA = 150/54 ≈ 2.8:1
-
Question 14 of 30
14. Question

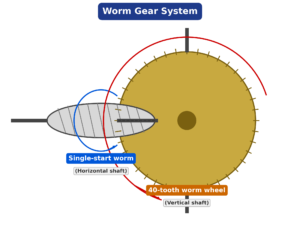

Refer to the figure. What is the velocity ratio of this worm gear system?
Correct
Velocity Ratio = Number of teeth on worm wheel ÷ Number of starts on worm = 40 ÷ 1 = 40:1
Incorrect
Velocity Ratio = Number of teeth on worm wheel ÷ Number of starts on worm = 40 ÷ 1 = 40:1
-
Question 15 of 30
15. Question
Refer to the figure. If force F = 100 N is applied, what is the tension in rope segment AB?
Correct
In this configuration, tension in AB = F × cos(45°) = 100 × 0.707 = 70.7 N.
Incorrect
In this configuration, tension in AB = F × cos(45°) = 100 × 0.707 = 70.7 N.
-
Question 16 of 30
16. Question

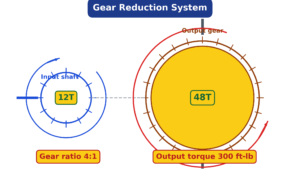

Refer to the figure. What torque is required at the input shaft?
Correct
Torque calculation: Output torque / gear ratio = 300 ft-lb / 4 = 75 ft-lb input torque required.
Incorrect
Torque calculation: Output torque / gear ratio = 300 ft-lb / 4 = 75 ft-lb input torque required.
-
Question 17 of 30
17. Question
Refer to the figure. At which point is the beam most likely to break?
Correct
Maximum bending moment occurs at the center of a simply supported beam with uniform load. Point B is at the center where stress concentration is highest.
Incorrect
Maximum bending moment occurs at the center of a simply supported beam with uniform load. Point B is at the center where stress concentration is highest.
-
Question 18 of 30
18. Question
Passage: ‘Modern desalination plants convert seawater into freshwater using processes such as reverse osmosis. In reverse osmosis, seawater is forced through semi-permeable membranes that block most salt ions and impurities. Although the process can supply drinking water in dry regions, it often requires large amounts of energy and careful disposal of concentrated brine.’
According to the passage, what is reverse osmosis used for?
Correct
The passage states that desalination plants convert seawater into freshwater using reverse osmosis.
Incorrect
The passage states that desalination plants convert seawater into freshwater using reverse osmosis.
-
Question 19 of 30
19. Question
Passage: ‘Modern desalination plants convert seawater into freshwater using processes such as reverse osmosis. In reverse osmosis, seawater is forced through semi-permeable membranes that block most salt ions and impurities. Although the process can supply drinking water in dry regions, it often requires large amounts of energy and careful disposal of concentrated brine.’
Based on the passage, what is one drawback of reverse osmosis?
Correct
The passage says the process often requires large amounts of energy.
Incorrect
The passage says the process often requires large amounts of energy.
-
Question 20 of 30
20. Question
Passage: ‘Modern desalination plants convert seawater into freshwater using processes such as reverse osmosis. In reverse osmosis, seawater is forced through semi-permeable membranes that block most salt ions and impurities. Although the process can supply drinking water in dry regions, it often requires large amounts of energy and careful disposal of concentrated brine.’
The word ‘concentrated brine’ in the passage most nearly refers to:
Correct
Brine is water with high salt content, and the passage describes it as a disposal concern.
Incorrect
Brine is water with high salt content, and the passage describes it as a disposal concern.
-
Question 21 of 30
21. Question
Passage: ‘Modern desalination plants convert seawater into freshwater using processes such as reverse osmosis. In reverse osmosis, seawater is forced through semi-permeable membranes that block most salt ions and impurities. Although the process can supply drinking water in dry regions, it often requires large amounts of energy and careful disposal of concentrated brine.’
The author’s tone in the passage is best described as:
Correct
The passage explains how the process works and notes benefits and drawbacks in a neutral, educational way.
Incorrect
The passage explains how the process works and notes benefits and drawbacks in a neutral, educational way.
-
Question 22 of 30
22. Question
Passage: ‘In team settings, clear communication reduces costly errors and helps members coordinate tasks efficiently. When expectations are vague, people may duplicate work, overlook deadlines, or assume others are handling critical responsibilities. Managers who provide concise instructions and timely feedback often improve both productivity and morale.’
According to the passage, vague expectations can lead to:
Correct
The passage states that when expectations are vague, people may duplicate work and overlook deadlines.
Incorrect
The passage states that when expectations are vague, people may duplicate work and overlook deadlines.
-
Question 23 of 30
23. Question
Passage: ‘In team settings, clear communication reduces costly errors and helps members coordinate tasks efficiently. When expectations are vague, people may duplicate work, overlook deadlines, or assume others are handling critical responsibilities. Managers who provide concise instructions and timely feedback often improve both productivity and morale.’
According to the passage, managers improve outcomes by:
Correct
The passage directly says managers who provide concise instructions and timely feedback improve productivity and morale.
Incorrect
The passage directly says managers who provide concise instructions and timely feedback improve productivity and morale.
-
Question 24 of 30
24. Question
Passage: ‘Composite materials are increasingly used in aircraft because they combine low weight with high strength. By reducing structural mass, engineers can improve fuel efficiency and payload capacity. However, composites may require specialized inspection methods because internal damage is not always visible from the surface.’
According to the passage, one advantage of composite materials is:
Correct
The passage states that reducing structural mass can improve both fuel efficiency and payload capacity.
Incorrect
The passage states that reducing structural mass can improve both fuel efficiency and payload capacity.
-
Question 25 of 30
25. Question
Passage: ‘Composite materials are increasingly used in aircraft because they combine low weight with high strength. By reducing structural mass, engineers can improve fuel efficiency and payload capacity. However, composites may require specialized inspection methods because internal damage is not always visible from the surface.’
Based on the passage, why might composites require specialized inspection?
Correct
The passage explains that internal damage is not always visible externally.
Incorrect
The passage explains that internal damage is not always visible externally.
-
Question 26 of 30
26. Question
Passage: ‘Composite materials are increasingly used in aircraft because they combine low weight with high strength. By reducing structural mass, engineers can improve fuel efficiency and payload capacity. However, composites may require specialized inspection methods because internal damage is not always visible from the surface.’
The main idea of the passage is that composite materials:
Correct
The passage balances benefits such as low weight and strength with the drawback of harder inspection.
Incorrect
The passage balances benefits such as low weight and strength with the drawback of harder inspection.
-
Question 27 of 30
27. Question
Passage: ‘Composite materials are increasingly used in aircraft because they combine low weight with high strength. By reducing structural mass, engineers can improve fuel efficiency and payload capacity. However, composites may require specialized inspection methods because internal damage is not always visible from the surface.’
The author’s tone is best described as:
Correct
The passage presents advantages and limitations in a neutral explanatory way.
Incorrect
The passage presents advantages and limitations in a neutral explanatory way.
-
Question 28 of 30
28. Question
A rectangular room is 18 ft long and 14 ft wide. What is its area?
Correct
Area of rectangular room = length × width = 18 × 14 = 252 ft².
Incorrect
Area of rectangular room = length × width = 18 × 14 = 252 ft².
-
Question 29 of 30
29. Question

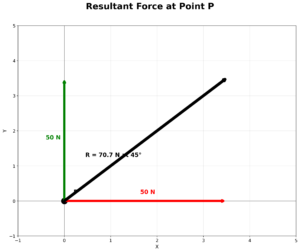

Refer to the figure. What is the resulting force at point P?
Correct
Two 50 N forces acting at 90° to each other, meeting at point P
Incorrect
Two 50 N forces acting at 90° to each other, meeting at point P
-
Question 30 of 30
30. Question
Refer to the figure. Which spring will compress more under the same load?
Correct
Two springs with different spring constants – Spring A (longer, more coils) and Spring B (shorter, fewer coils)
Incorrect
Two springs with different spring constants – Spring A (longer, more coils) and Spring B (shorter, fewer coils)
